High-Performance Ventilated Facades
Pioneering standard-setting external envelope systems that seamlessly combine thermal dynamics, micro-climate breathability, and structural durability for premium green buildings.
Ventilated Facade Systems for Sustainable Building Envelopes
The ventilated façade represents the modern standard of high-efficiency external building envelopes, shifting away from outdated wet masonry methods toward responsive dry assembly. By dividing the structural wall and the decorative outer shield with a deliberate, naturally circulating air chamber, this engineering approach creates a continuous thermal equilibrium across the property perimeter.
At MIR Green Buildings, we optimize this system to target systemic energy reductions while completely shifting how large-scale structures mitigate heat loads and dampness. Whether implemented in premium new construction or complex urban retrofits, our custom multi-layered layouts are built to reduce HVAC operating costs while strictly aligning with international green building criteria.
Engineered System Advantages
Our design philosophy detaches decorative aesthetic choices from weatherproofing fundamentals, adding layers of proactive protection to maximize structural lifespans.
Energy Efficiency Optimization
Significantly cuts down solar radiant heat gain during high-temperature months and retains internal heat in winter, directly driving down annual HVAC utility overheads.
Active Cavity Breathability
The calculated 'chimney effect' handles internal moisture vapor transmission seamlessly, preventing stagnant air pockets, damp patches, and chronic mold formation.
Structural Core Protection
Deflects thermal shock away from primary structural framing, sheathing, and masonry cores, heavily reducing natural material expand-and-contract weathering degradation.
Modular Disassembly Logistics
Engineered for agile, rapid maintenance workflows. Separate cladding panels can be independently removed, inspected, or fully recycled with no structural downtime.
Acoustic Performance
The structural break created by the air cushion combined with premium technical insulation panels significantly drops ambient external noise transmission.
Integrated Fire Safety
Fitted with code-compliant non-combustible cladding choices and mechanical cavity fire barriers to limit and contain vertical perimeter fire spread.
Elimination of Thermal Bridges
Wraps the external envelope uniformly to systematically remove geometric and structural thermal leakage points, keeping inside temperatures strictly regular.
Design Customization
Gives structural engineers and architects true flexibility to utilize bold material textures, open joints, and modern panel sizing without lowering enclosure performance.

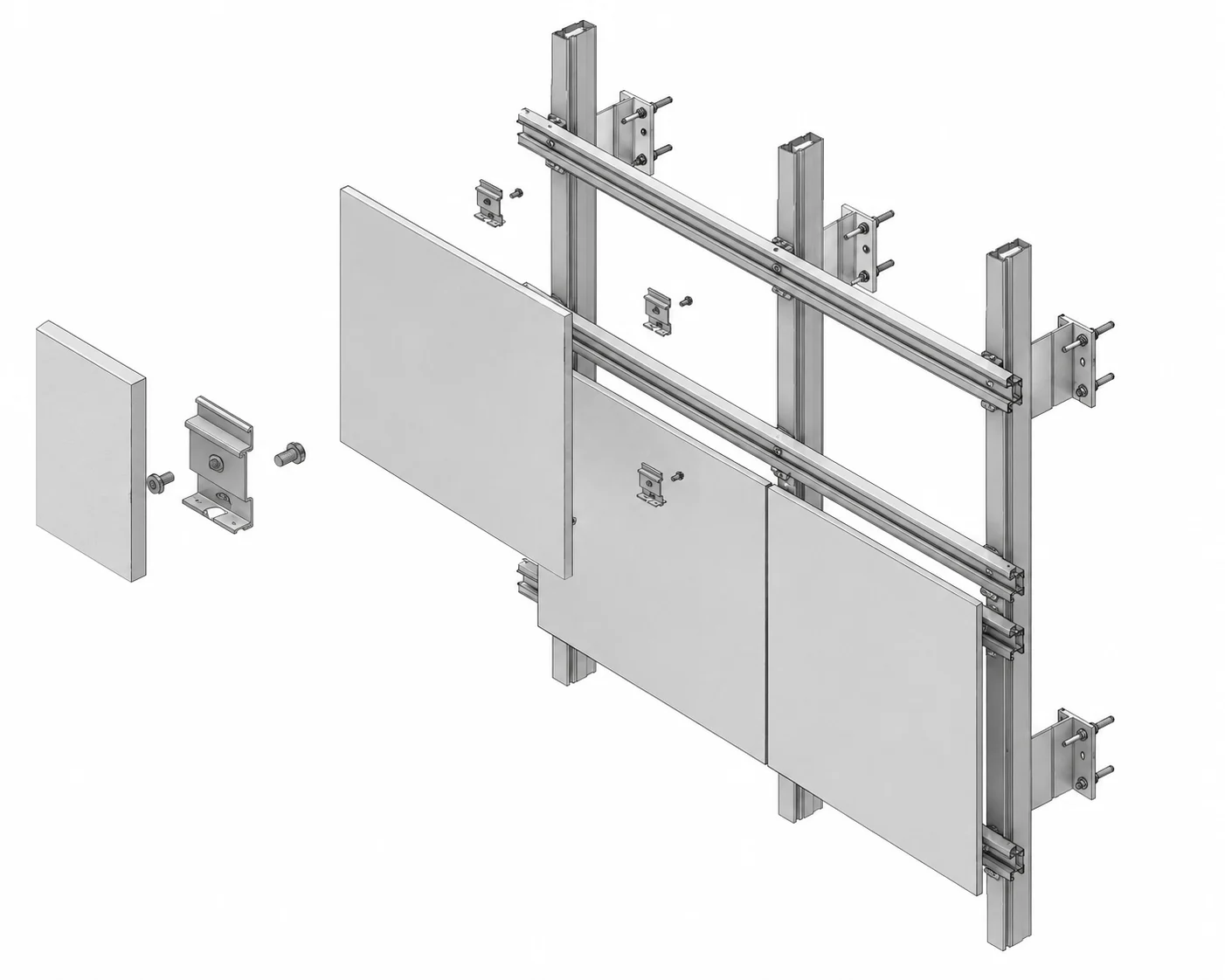

The Ventilated Curtain Wall System (VCWS) Layout
Our advanced Ventilated Curtain Wall System relies on precise spatial planning across multiple component layers. The system is anchored back to the primary building masonry or concrete wall structure using a heavy-duty mechanical substructure composed of premium aluminum or stainless steel wall brackets and structural profiles. This framing layout is configured to securely lock cladding panels into place while holding a precise air slot width that regulates air pressure changes safely.
By creating an uninterrupted weather shield that absorbs the impact of atmospheric pressures, wind, and driving rain, the system redirects moisture downward and outward through smart internal channels. This technical decoupling ensures the inner structural walls remain continuously dry and pristine, safeguarding the overall health of the property asset for decades under demanding conditions.
Premium Cladding Specifications
Cladding options are meticulously selected based on strict physical-mechanical thresholds, ensuring exceptional resistance to drastic temperature shifts, UV exposure, and minimal water absorption coefficients.
Sintered Stoneware
An ultra-dense, completely non-porous mineral choice. It delivers exceptional compressive strength and is completely immune to urban pollution staining, making it ideal for pristine architectural finishes.
Fired Brick Panels
Combines traditional masonry warmth with modern lightweight dry-assembly layouts. Offers excellent weather resistance and zero tracking discoloration over long exposure periods.
Architectural Metals
Highly versatile aluminum, zinc, or composite metal choices. Designed to accommodate complex structural expansions, custom panel folding, and modern geometric profiles.
Technical Fiber Cement
Provides robust scratch resistance and a flat modern look. Highly selected for commercial properties due to its inherent fire-rated composition and vast spectrum of surface texture variations.
Sintered Stone Slabs
Engineered using extreme pressure and heat to mimic natural stone perfectly. Delivers immense panel size capacities with drastically reduced weight compared to quarry options.
High-Pressure Laminate (HPL)
An elastic yet structurally rigid option providing dense impact defense. Ideal for bold architectural features requiring distinct patterns, low weight loads, and zero moisture retention.
End-to-End Facade Delivery
We approach the building envelope from a standpoint of absolute precision. Our technical teams design, calculate, and supply comprehensive facade solutions that account for everything from the building's raw structural slab to the exterior face of the outer weather panel, providing clear calculations for energy yield improvements and thermal insulation integrity.
Changing Urban Perspectives
Our collaborative design workflows harmonize engineering realities with bold architectural concepts. By providing completely custom component profiles—including heavy-duty brackets, structural sealing nodes, and tailored sub-framing grids—we give developer teams the space to safely explore open joints and mixed cladding textures without reducing enclosure safety parameters.
Meeting Global Green Frameworks
Every ventilated facade option curated by MIR Green Buildings undergoes detailed simulation profiling. This verification models wind-load resistance, acoustic buffering indices, and thermal baseline parameters to guarantee straightforward pathways toward matching green building compliance metrics across regional and international regulatory boards.
Long-Term Asset Optimization
Investing in an engineered dry ventilated wall layout shifts a building's posture from standard passive shield to highly responsive weather system defense, securing predictable energy consumption over multi-decade cycles.
- Extended Life of Structural Materials By continuously funneling tracking moisture and wind-driven vapor away from primary structural seams, the layout actively stops rot, moisture degradation, and localized corrosion of critical steel reinforcement or anchoring brackets.
- Premium Interior Air Quality Preservation The continuous evacuation of interstitial moisture stops toxic fungal and mold amplification paths inside the deep wall cavity. This keeps internal air volumes safe and pure, shielding stakeholders against unpredicted health claims.
- Retrofit Modernization Advantages Our technical dry sub-framing solutions anchor safely to aging perimeter substrates, allowing existing properties to be safely upgraded with high-performance insulation shields and striking modern finishes without disruptive wet demolition processes.
